Linux 5 - The Boot Manager

• LILO
• GRUB
• BackUP the MBR

LILO is rarely used

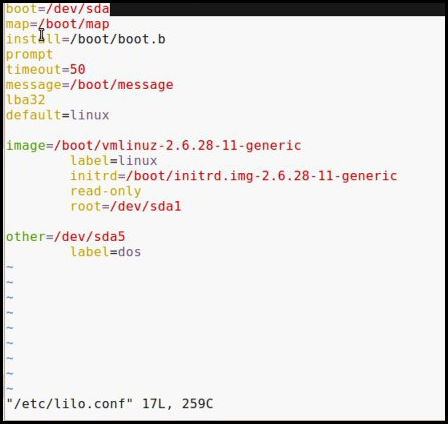

the LILO configuration is stored in /etc/lilo.conf

Explanation:
–boot   → what device it’s going to boot from (in this case the first serialATA
–map    → LILO creates a map file to say what is mapped where
–install → default, leave this boot.b as the default
–prompt  → does it prompt the user or boot directly
–timeout → timeout default 50s
–message → welcome message to the boot screen
–lba32   → type of drive, it’s an LBA drive so it can use the entire drive
–default → what default label it boot

There are two different operating systems or stanzas.
The first one is /boot/vmlinuz….
mount read only
located on /dev/sda1
The second one is an active an bootable partition labeled dos
to update, issue the command lillo
It might give you a warning that is only for older computers.
GRUB

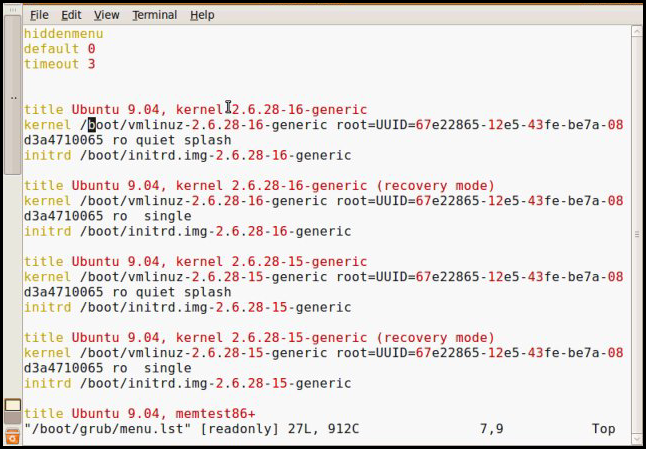

The older version (v1) was like this and was located in /boot/grub/menu.lst

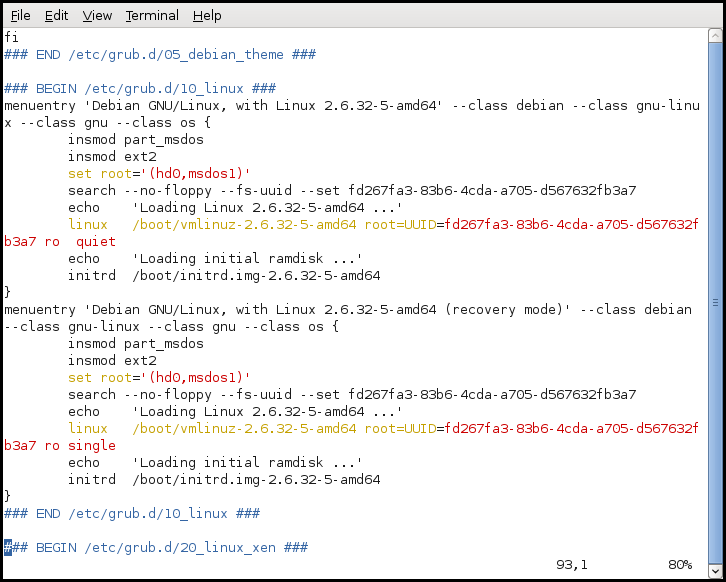

GRUB version 2 menu is in grub.cfg in /boot/grub/

To install grub run:
grub-install /dev/sda
BackUP MBR
IDE Drives: /dev/hda
SATA Drives /dev/sda

root@debian:~# mount
/dev/sda1 on / type ext3 (rw,errors=remountro)

our root parition is /dev/sda, mount is a way to double check

root@debian:~# dd if=/dev/sda of=/root/backup.mbr bs=512 count=1
1+0 records in
1+0 records out
512 bytes (512 B) copied, 0.0282292 s, 18.1 kB/s
root@debian:~#

1. if = input file
2. of = output file
3. bs = block size
4. count = how many = 1 = one block of 512 bytes

To restore:

dd if=/root/backup.mbr of=/dev/sda bs=512 count=1

You can restore the MBR from a floppy, usb, live cd, etc.

---
